What are the PTFE wire conductor types?

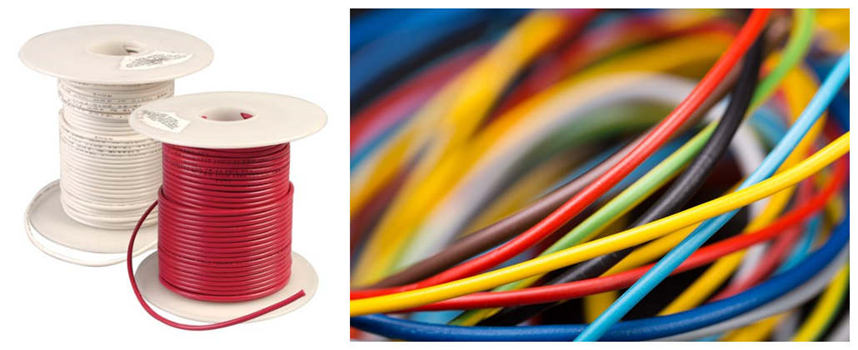

PTFE wire is a kind of high temperature Teflon wire with PTFE insulation. If you need to buy PTFE cable, Huadong Cable Group will be your ideal choice. HDC is one of the famous PTFE insulated wire manufacturers in world. What’s more, we can produce PTFE insulated cable according to your requirement. In our factory, there are different type PTFE wire for sale. As for PTFE coated Teflon wire conductor, you can choose nickel plated copper wire, tinned plated copper wire, silver plated copper wire or other types. Besides, the PTFE insulated cable conductor sizes are also not the same. So that you can choose suitable PTFE Teflon wire sizes for your project. Email: sales@hdchightemperaturewire.com
 |
Type : Single Core/Multi Core
Voltage: 250 V / 600 V / 1000 V or according to your requirement Conductor : Nickel plated copper / Tinned plated copper / Silver plated copper Size: 6AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 24 AWG, 26 AWG, 28 AWG and so on Insulation : PTFE Wrap Insulation Temperature : – 65°C to + 260°C Properties : Resistant to Fire, Chemicals, Acids, Sunlight, Moisture |
For example, you can purchase 6AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 24 AWG, 26 AWG, 28 AWG PTFE high temperature wire. Please leave the PTFE coated cable sizes you need, then our manager will supply best PTFE shielded cable price as soon as possible.
What are the structure of PTFE Teflon wire?

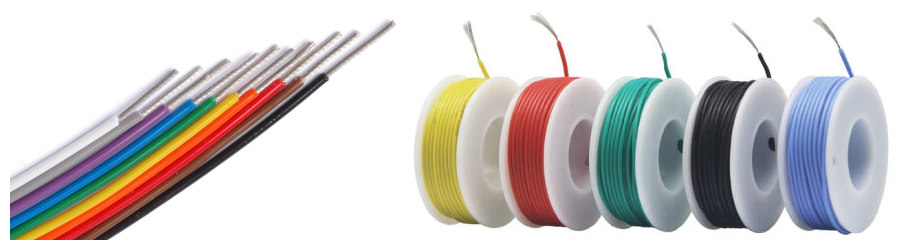

Generally speaking, the structure of the cable PTFE wire is very simple. Most of these PTFE high temp wire consists of conductor and insulation layer. However, compared to ordinary power cables, wire PTFE cable cross-sectional area is relatively small. As we mentioned, there are mainly three kinds of PTFE wire conductors. Which includes nickel-plated copper wire, tinned plated copper conductor and PTFE silver plated copper wire. In fact, different PTFE coated cable conductor has its own advantages. And different type PTFE high temperature stranded wire prices are not the same. If you want to buy popular nickel-plated copper 18 awg or 24 awg PTFE insulated wire, please feel free to contact us. We will supply best nickel coated copper wire PTFE wire price as soon as possible. Email: sales@hdchightemperaturewire.com
Different PTFE Teflon wire conductors are mainly used to meet various functional requirements. Such as welding, electrical conductivity, and wear resistance. So you have to choose the right PTFE Teflon wire sizes according to your actual use environment needs. What kind of PTFE coated cable do you need? Just leave your message.
What are the features of PTFE cable nickel plated copper conductor?
On the different advantages of wire PTFE shielded cable conductors, this is the professional explanation given by the Huadong Cable Group. Nickel plated copper conductor PTFE wire has good antioxidation and wear resistance. Among many metallic materials, nickel is considered as a better material that resists accelerated oxidation in high temperature environments. If you just need wire PTFE cable, please kindly send us your inquiry PTFE wire list and PTFE coated wire quantity. In fact, we have exported our PTFE shielded nickel plated copper wire to many countries. So you can get the cost of # 18 gauge nickel coated copper wire PTFE Teflon wire to Germany, Poland, Denmark, United Kingdom, France, Switzerland, Netherlands, United Arab Emirates, Russia, Thailand, Indonesia, Malaysia, Vietnam, Singapore, Myanmar, Canada, United States, Brazil, South Africa, Nigeria.
 |
Voltage: 600 V
Conductor : Nickel plated copper wire Size: 6AWG, 8AWG, 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG and so on Insulation : Polytetrafluoroethylene (PTFE) Temperature : – 65°C to + 260°C Color: White, Blue, Red, Black, Brown, Yellow, Green, Transarent, Yellow/Green |
In addition, the melting point of nickel is about 2 times that of copper. Therefore, nickel can effectively protect the coated copper conductor from high temperature. After the copper conductor is plated with nickel, the resistivity is slightly higher. But the flexibility and fatigue resistance of 18 gauge PTFE cable are improved. It is very important to use nickel plated copper conductor at a temperature of 250°C. Usually 2% by weight of nickel plating is sufficient. If you need # 18 awg PTFE hook up wire with nickel plated copper conductor, please contact us. Huadong will manufacture high quality and low price PTFE coated wire for you.

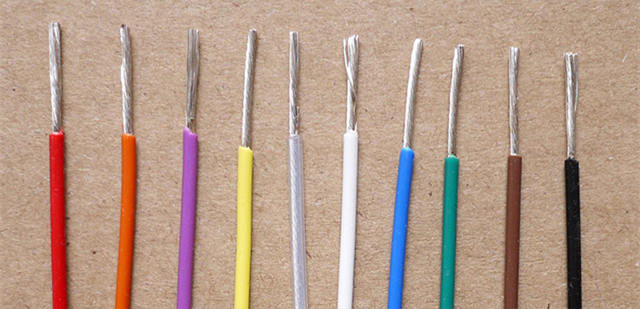

What are the features of PTFE insulated wire tinned plated copper wire?
The advantage of tinned plated copper conductor is to increase PTFE hook up wire welding performance and good oxidation resistance. Because tin will form two tin oxide thin film in air, which can prevent further oxidation of PTFE insulated wire conductor. Tin plating prevents copper from being exposed to air and is oxidized to form CU2(OH)2CO3. The poor conductivity of the patina will increase the cable PTFE wire resistance. Tin plated copper PTFE Teflon wire has good corrosion resistance, strength and hardness, good moldability and easy welding. If you want to know more about tinned plated copper, please contact us.
 |
Voltage: 600 V
Conductor : Tinned plated copper wire Type: Multi Core Insulation : Polytetrafluoroethylene (PTFE) Temperature : – 65°C to + 260°C Jacket: Fiberglass, PVC, Teflon, Silicone Rubber Galvanized Layer material: Stainless Steel, Tinned Brass |
If you just need tinned copper PTFE hook up wire, please message us immediately. Huadong promise to deliver cable PTFE wire on time. At the same time, as a PTFE insulated wire manufacturers, we will also give you the lowest PTFE cable price possible. If you have any other questions about PTFE hook up wire, please feel free to contact us. Email: sales@hdchightemperaturewire.com

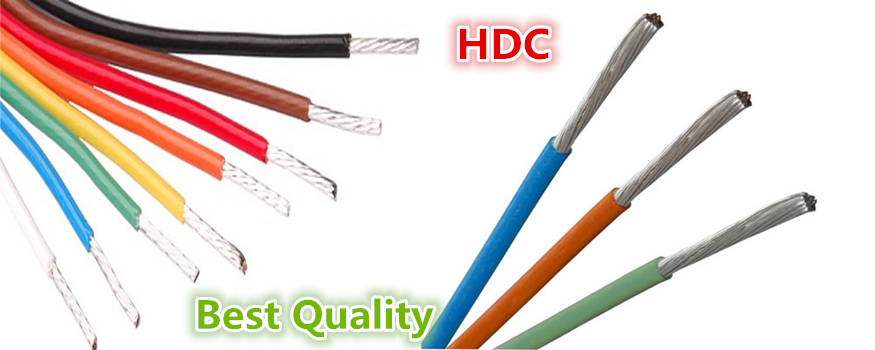

What are the advantages of PTFE silver plated copper wire?
Silver has good adaptability. And its electrical conductivity and thermal conductivity are the highest among all metals. Therefore, silver plating on copper core in PTFE Teflon wire can well combine the characteristics of the two metals. Wire PTFE silver plated stranded copper wire not only has good electrical conductivity, but also can effectively withstand high temperature environment. If you want to buy PTFE silver plated copper wire, please leave your message. In addition, any further questions about PTFE high temperature stranded wire please feel free to contact with us. In fact, In terms of conductivity, PTFE silver plated copper wire is the best. The first reason is that the conductivity of silver is much better than tin and nickel.
 |
Voltage: 250 V / 600 V / 1000 V
Conductor : Silver plated stranded copper wire Size: 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG and so on Insulation : Polytetrafluoroethylene (PTFE) Temperature : – 65°C to + 260°C Properties : Resistant to Fire, Chemicals, Acids, Sunlight, Moisture Color: White, Blue, Red, Black, Brown, Yellow, Green, Transarent, Yellow/Green Send Your Inquiry by Email: sales@hdchightemperaturewire.com |

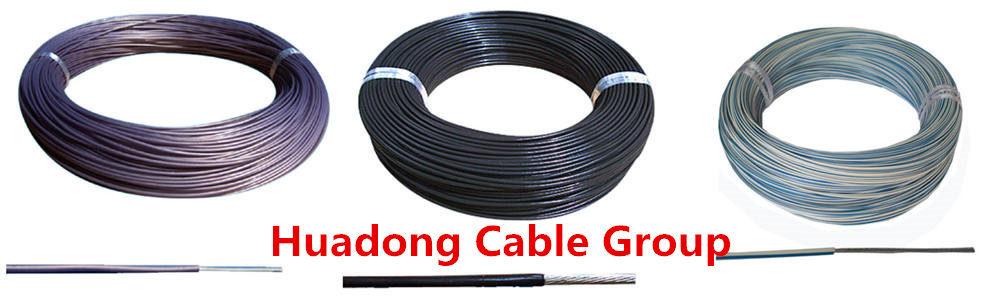

Another reason is that conductors have a surface effect. That is, the distribution of current is not uniform when conducting. The closer to the surface of the PTFE coated wire conductor, the greater the current. Therefore, it is the best choice to choose the most conductive silver as a PTFE cable coating. Huadong is a professional cable PTFE coated wire supplier. If you ready to buy PTFE equipment wire, our company will be your ideal cooperation partner. Looking forward your PTFE insulated wire inquiry.

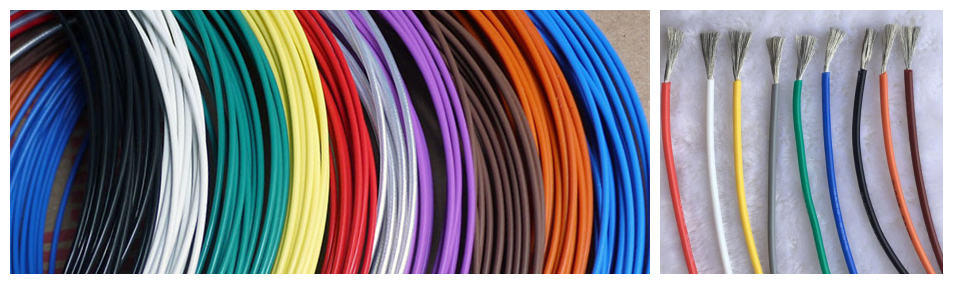

How about the cable PTFE wire price?
However, there is one of the important factors that can’t be ignored. That is, PTFE silver plated stranded copper wire is relatively expensive than other kind of PTFE insulated wire. At the same time, conductivity should not be the only standard for your choice of cable PTFE wire. You should consider various factors to choose the PTFE insulated wire that suits your needs. For example, high temperature performance of PTFE coated wire, low temperature resistance and resistance to various chemical influences. At the same time, you should consider your PTFE cable cost budget. Leave your message to tell us what kind of PTFE equipment wire do you need.

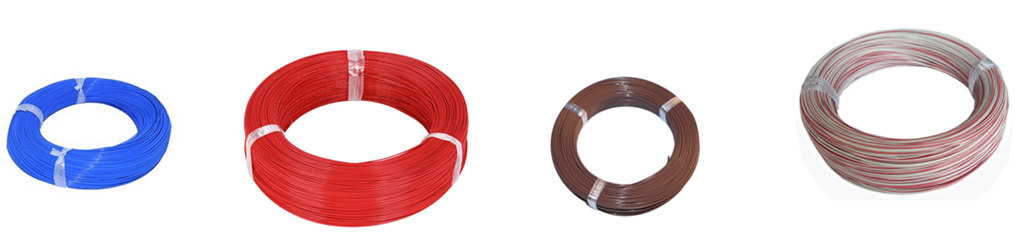

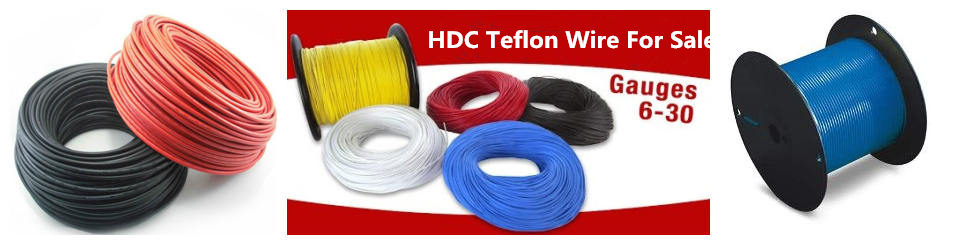

There are many kinds of wire PTFE cables. According to the wire gauge, you can choose 18 AWG PTFE wire, 22 AWG PTFE cable and so on. In general, PTFE insulated wire is single core. But PTFE insulated multicore cable is available according to your requirements. At the same time, HDC Group manufacture PTFE shielded cable for you if you want. In a word, we produce a series of standard wire PTFE coated cable, and also provide customized PTFE Teflon wire services. Now leave your PTFE insulated wire requirements to us. We will reply you as soon as possible. Looking forward your PTFE hook up wire inquiry. Email: sales@hdchightemperaturewire.com
What kind of PTFE high temperature stranded wire do you need?
18 AWG PTFE wire, PTFE shielded cable, PTFE hook up wire, PTFE insulated multicore cable or PTFE silver plated stranded copper wire? Just leave your requirements. If you still don’t know how to choose the right wire PTFE cable, please feel free to message us. As one of leading cable PTFE insulated wire manufacturers in the world, we have a lot of experience of advising on cable PTFE high temperature stranded wire selection. Whether it is the choice of PTFE hook up wire conductor or the choice of PTFE cable gauge. All of these problems we can help you. Our professional technical team is available to discuss your special application and to help you meet the specific wire PTFE coated cable requirements.
Product Process: Our PTFE wire use the high quality nickel/silver/tinned plated copper conductor material and Teflon PTFE insulation material. Every production process has been strictly checked by our professional technical engineers.
Starting customize your ideal size, our factory price will send you within 12 hours.

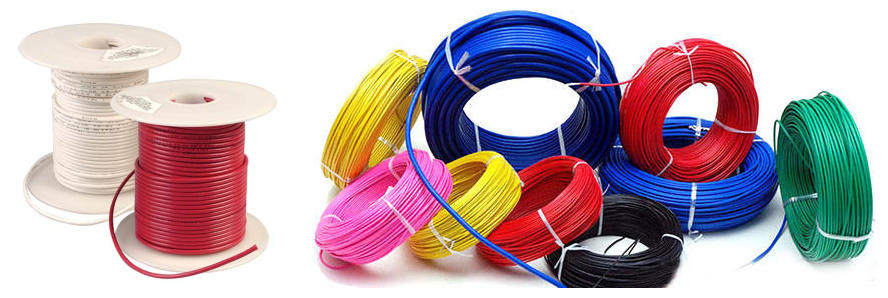

Package & Delivery: Huadong PTFE cable packaging by roll or wooden drum or according to client’s requirement and deliver on time definitely.
Customer Case: Our PTFE insulated wire products have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia, Oceania countries, etc.
Starting customize your ideal size, our factory price will send you within 12 hours.
Email: sales@hdchightemperaturewire.com
